Practice - 10.1
Practice - 10.1
Practice - 10.1
Practice - 10.1

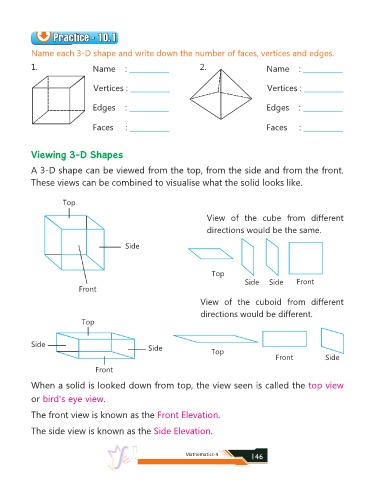

Name each 3-D shape and write down the number of faces, vertices and edges.
1. Name : ___________ 2. Name : ___________
Vertices : ___________ Vertices : ___________
Edges : ___________ Edges : ___________
Faces : ___________ Faces : ___________
Viewing 3-D Shapes
A 3-D shape can be viewed from the top, from the side and from the front.
These views can be combined to visualise what the solid looks like.
Top
View of the cube from different
directions would be the same.
Side
Top
Side Side Front
Front
View of the cuboid from different
directions would be different.
Top
Side
Side
Top
Front Side
Front
When a solid is looked down from top, the view seen is called the top view
or bird’s eye view .
The front view is known as the Front Elevation .
The side view is known as the Side Elevation .
